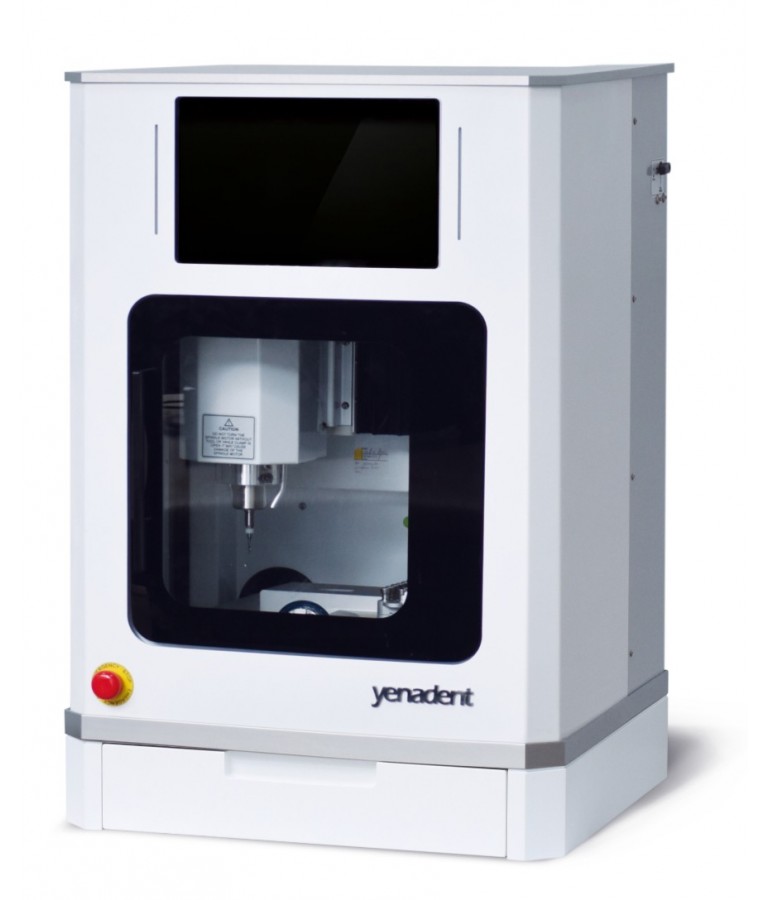

Yenadent D10 MAX
The D10MAX is a machine dedicated to soft materials and ceramics.
Compact, agile, and versatile, the D10MAX adapts to all budgets and needs, from single-person labs to large industrial laboratories. After just 3 hours of training, you will be completely autonomous.
Starting at 33 500€ (Final pricing may vary depending on the options. Request your custom quote today!)
Technical Information
- 1 disc holder
- Spindle power: 500 W
- Spindle speed: 60,000 rpm
- Number of tools: 12
- Angular travel on B-axis: +/- 30 degrees
- Control PC with touchscreen
- Email notification reception
- Automatic probe that calibrates tools every 30 minutes.As a result, the machine manages the replacement of broken or worn tools using a substitute tool.
- Lightweight (74 kg), desktop machine that fits in any laboratory space
- Automatic file transfer between the computer and the machine – no need for a USB drive
- Tempered glass door
Included : The Mayka Dental 5-axis CAM software with a module for soft materials.
Machinable Materials
- Wax
- Peek
- Zirconia
- Fiberglass
- Pre-sintered metal
- Flexible polyamide
- PMMA & Pink PMMA for gingiva
Optional: Ceramic machining with a water-based system.
Available Options
- YD15OW Option: Water-based machining system for ceramic processing.
System provided with a 3-ceramic holder. - BO250 Central Aspiration – Bofa Dental Pro:
- Airflow: 3 m³/min
- Brushless motor for durability (carbon-free motor)
- HEPA filter
- CMP011 Compressor – Puma:
- Dual-cylinder compressor – 220V
- Maximum pressure: 8 bars
- Power: 1.5 kW
- Noise level: 56 dB
- Dimensions: 800 x 605 x 865 mm
- Aspiration flow rate: 304L/min (restored flow > 100L/min at 8 bar)
- 60-liter tank
- Air dryer included
- O Option: Eaton Protection UPS
EATON 1200kVA
