YENADENT D15 max

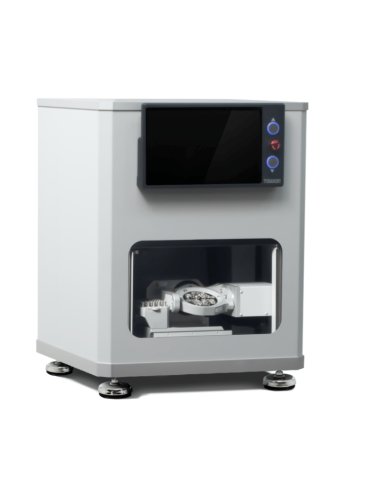

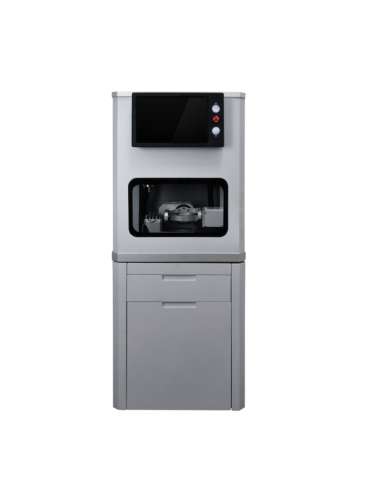

D15 MAX – Advanced 5-Axis Milling Machine for Dental Applications
The D15 MAX is an enhanced 5-axis milling machine engineered for high-precision dental restorations. Building upon the robust foundation of the D15, the D15 MAX introduces significant upgrades to meet the evolving demands of dental laboratories.
The D15 MAX stands as a testament to innovation in dental milling technology, offering enhanced performance, user-friendly features, and the versatility required for modern dental laboratories.
Starting at 54 000€ (Final pricing may vary depending on the options. Request your custom quote today!)
Key Enhancements
- Upgraded Electronics: Features advanced EtherCAT electronics paired with an industrial PC, ensuring faster data processing and improved reliability.Yena Europe
- Powerful Servo Motors: Equipped with 400W servo motors with absolute encoders, offering four times the power of its predecessor. This upgrade enhances speed, accuracy, and reduces the need for frequent calibrations.Yena Europe
- Expanded Accessibility: A wider door design facilitates easier disc and tool replacements, as well as simplified maintenance procedures.Yena Europe
Performance Highlights
- Rapid Milling: Capable of milling a full anatomical zirconia crown in approximately 7 minutes, significantly reducing production time.Yena Europe
- Versatile Material Compatibility: Handles a wide range of dental materials, including zirconia, PMMA, wax, PEEK, soft metals, CrCo, ceramics, and titanium (with optional wet system).Yenadent Machines
Technical Specifications
- Axes: 5-axis continuous milling with A & B axes tilt angles of ±28 degrees.
- Spindle: 1.3 kW power, operating at up to 60,000 RPM.
- Tool Changer: Automatic changer with 28 tool pockets.
- Dimensions: Approximately 60 cm (W) x 70 cm (H) x 80 cm (L).
- Weight: Net weight of 140 kg.
